The proposed Avalon Skywell Water Temple at golden hour, integrated into a lush coastal preserve with terraces and water gardens.

‘ĀINA Preserve · Regenerative Infrastructure

LUX ‘ĀINA
Avalon Skywell™

Water Temple · Crystalline Well · Photonic Lighthouse

Water for Life. Light for the World.

Explore the Water Temple See How It Works

Modular within · Monolithic without

Concept-study visualization · engineering validation required

01The idea

The sky gives.
The earth receives.
The temple transforms.
The light reveals.

The Water Temple joins atmospheric water harvesting, thermal storage, crystalline water architecture, ecological distribution and photonic beacon research in one regenerative platform.

“What the sky gives, the earth receives.
What the earth receives, life returns.
What the temple receives, the light reveals.”

02Six transitions · one cycle

Receive water.
Return life.

Move through the sequence. Every transition is designed as a bounded, observable system.

03Vertical section

Seven levels.
One luminous axis.

The engineering is revealed only in section. Select a level to trace the path from earth to horizon.

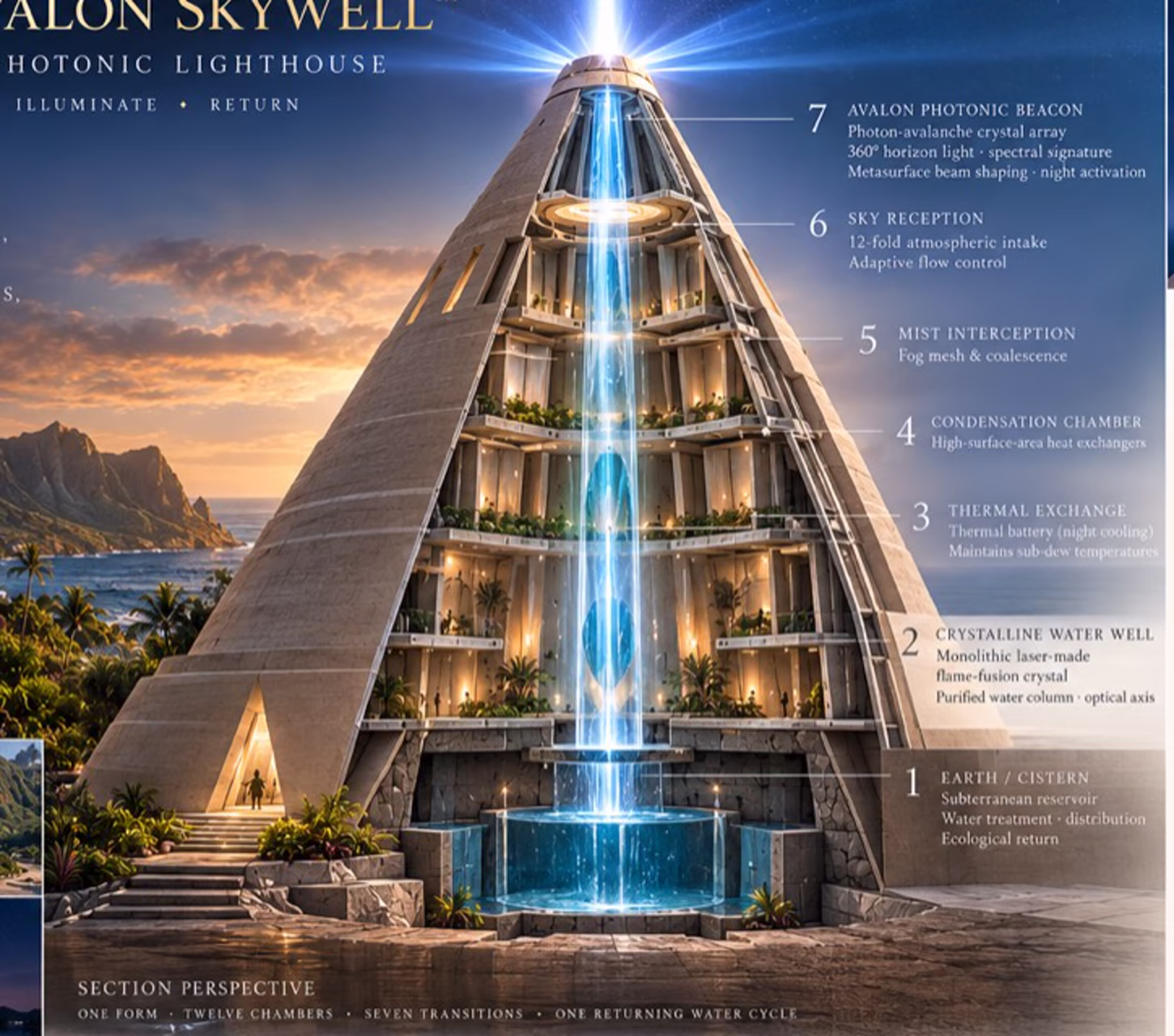

Architectural cutaway of the proposed Water Temple, showing the continuous central water and light axis. — Concept section · modular equipment concealed behind a monolithic mineral shell

7 · LightAvalon Photonic Beacon

A twelve-sector, internally redundant optical crown for bounded photonic research.

04Modular within

Twelve chambers.
One form.

A shared radial geometry carries two environmental systems. Lower atmospheric cassettes receive and transform water. Upper photonic cassettes condition and reveal light.

One radial geometry · Two environmental systems

12serviceable
radial bays

Lower ring · water

Atmospheric modules

Intake labyrinth
Fog capture
Condenser
Drainage
Sensors
Dampers
Thermal connection

Upper ring · light

Photonic modules

Pump source
Nonlinear crystal cartridge
Optical conditioning
Beam shaping
Thermal management
Control electronics
Output aperture

The proposed Water Temple exterior reading as one continuous mineral form in the living landscape.

Mineral shell · concealed service ring · hidden intakes · flush apertures

05Monolithic without

One form
in the landscape.

From the landscape, the Water Temple reads as one form. Its machinery disappears into the architecture. Water, shadow, crystal and light become the ornament.

Mineral exterior
Concealed service ring
Hidden intakes
Flush optical apertures
No visible mechanical clutter

Concept visualization of an isolated crystalline water well within a circular limestone sanctuary.

Concept-study visualization · the vessel remains independent of the structural shell

06Crystalline water well

The Water Witness

The long-term vision is a monolithic or quasi-monolithic laser-fabricated or crystal-grown water-bearing element: optically expressive, hydraulically isolated, instrumented, serviceable and physically independent from the main shell.

“The crystal preserves the witness.”

Generation IAssembled high-purity crystalline vessel
Serviceable segments establish optical, hydraulic and maintenance baselines.
Generation IIFew-segment quasi-monolithic crystal
Fewer joints investigate optical continuity and fabrication limits.
Generation IIIPurpose-grown monolithic crystalline well
A long-term materials objective—not a claim of routine building-scale manufacture.

Blue-hour concept view of the Avalon Photonic Beacon operating above the Water Temple, with a restrained horizon signature.

Experimental optical research concept · not a certified navigation aid

07Avalon Photonic Beacon

Organized light.
A recognizable signal.

A modular, pump-driven experimental architecture for rare-earth nonlinear optical media, photon-avalanche and upconversion research, controlled spectral and temporal signatures, optional polarization modulation and advanced beam shaping.

I_emission ∝ I_pumpⁿStrongly nonlinear optical response above appropriate excitation regimes.

12-sector optical crown
Internally redundant modules
Replaceable crystal cartridges
Thermal and control isolation
Flush output apertures

08Water + thermal systems

One temple.
Separated flows.

The priority order is explicit: Rain > Fog > Passive Dew > Active Condensation.

Water system

Source-separated water

01Rain + Fog + Condensation
02Source-separated collection
03Treatment
04Crystalline Water Well / Storage
05Landscape distribution
06Agroforestry / Aquaponics / Wetland return

Thermal system

Night becomes capacity

01Night sky
02Radiative cooling
03Thermal battery
04Condenser
05Water production

Yakhchāl principles, respectfully referenced: thermal mass, subterranean storage, passive cooling and night-sky heat rejection inform the thermal study. The project does not claim to reproduce a specific historic structure or tradition.

The proposed Water Temple integrated at the high point of a living preserve, with water gardens descending toward the coast.

09Landscape integration

The temple is not an object.
It is a headwater.

At the preserve’s high point, stored water enters a living sequence of forest, food, cultivation and return.

01Water Temple
02Forest
03Agroforestry
04Market Garden
05Aquaponics
06Biofiltration
07Ecological Return

10Optional interpretive layer

Symbolic geometry,
not physical causation.

Open the HVCF / TTG interpretation

HVCF-7Vertical process spine

Seven transitions read the temple as a sequence from earth to light.

HVCF-12Radial environmental / photonic field

Twelve bays express repetition, balance, modularity and redundancy.

TTGCirculation and return geometry

Movement is interpreted as a cycle: Receive → Concentrate → Preserve → Amplify → Return.

This layer offers a contemplative reading of form and circulation. It is intentionally separated from engineering evidence and makes no physical-causation claim.

11Evidence status

Clear claims.
Visible boundaries.

Every proposition is labeled by its current evidence state. Future site-specific data belongs here after field validation.

Established principles

Observed and conventional physical foundations

Rain harvesting
Fog harvesting
Dew formation
Radiative cooling
Thermal storage
Conventional optical engineering

Proposed engineering

Integrated systems requiring site design and validation

12-sector atmospheric cassette architecture
Crystalline water-well integration
Thermal coupling across temple subsystems

Experimental R&D

Research questions—not performance promises

Architectural-scale monolithic crystal growth
Photon-avalanche beacon materials
Advanced metasurface beam shaping
Machine-readable photonic signatures

12Build phases

Pilot first.
Expand by evidence.

The temple begins as an instrumented site and water foundation. Experimental material and photonic systems arrive only after the primary ecology is understood.

Phase 0Site + climate instrumentation
Observe first. Establish rainfall, fog, humidity, wind, temperature and radiative-sky baselines.
Phase 1Cistern + foundation
Secure the water and structural ground plane.
Phase 2Structural shell + service cloister
Build the enduring form and its concealed maintenance path.
Phase 3Envelope + rain capture
Commission the highest-priority atmospheric source.
Phase 4Pilot atmospheric modules
Test fog, passive dew and bounded active condensation as separate cassettes.
Phase 5Crystalline Water Witness
Install an isolated first-generation vessel with full instrumentation.
Phase 6Avalon Photonic Beacon
Begin controlled optical research after water systems are stable.
Phase 7Full landscape return system
Connect verified water classes to cultivation and biofiltration.
Phase 8Expansion + experimental materials
Upgrade only what the evidence supports.

13The return

Build what gives back.

A sanctuary for water.
A laboratory for light.
A regenerative instrument for land and life.

Explore the ‘ĀINA Preserve View the Research Architecture Follow the Water Temple Project

Receive water · Preserve the witness · Return light
